2019/02/19

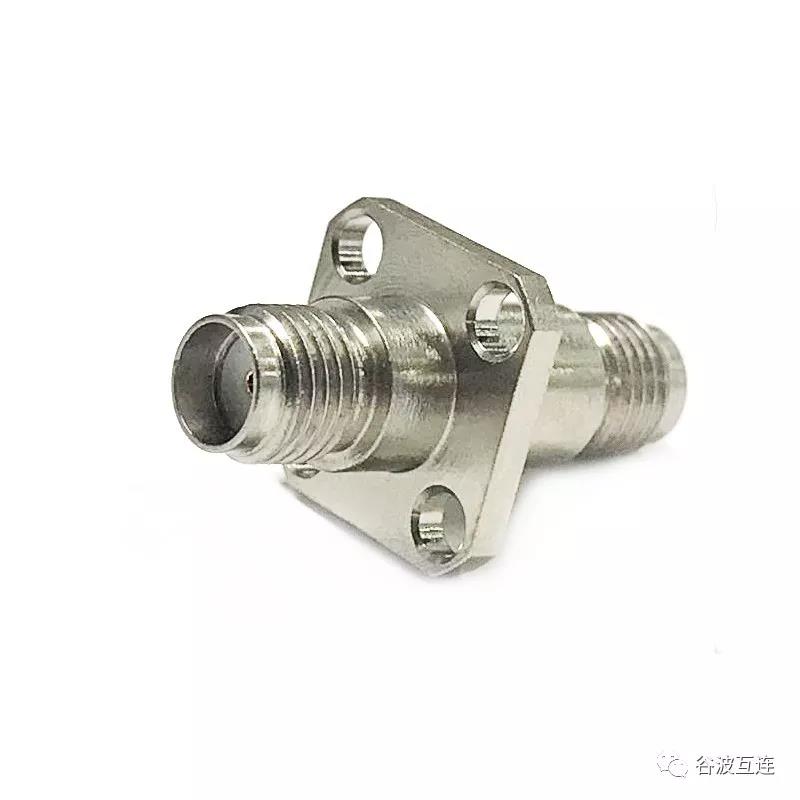

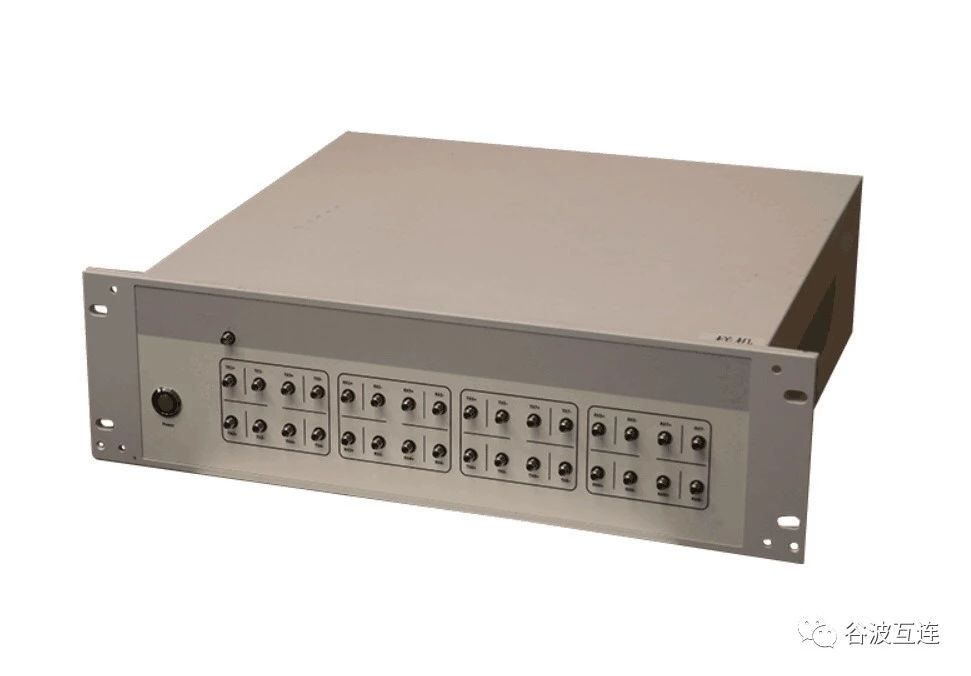

Extensive Applications The product, part#SMA-KFKG, is a kind of SMA adapter which is applied by almost all RF engineers. The widely use is to realize flange connection on the panel.it is well appropriate to achieve flange connection when the cables are between the inside or outside the case or module.

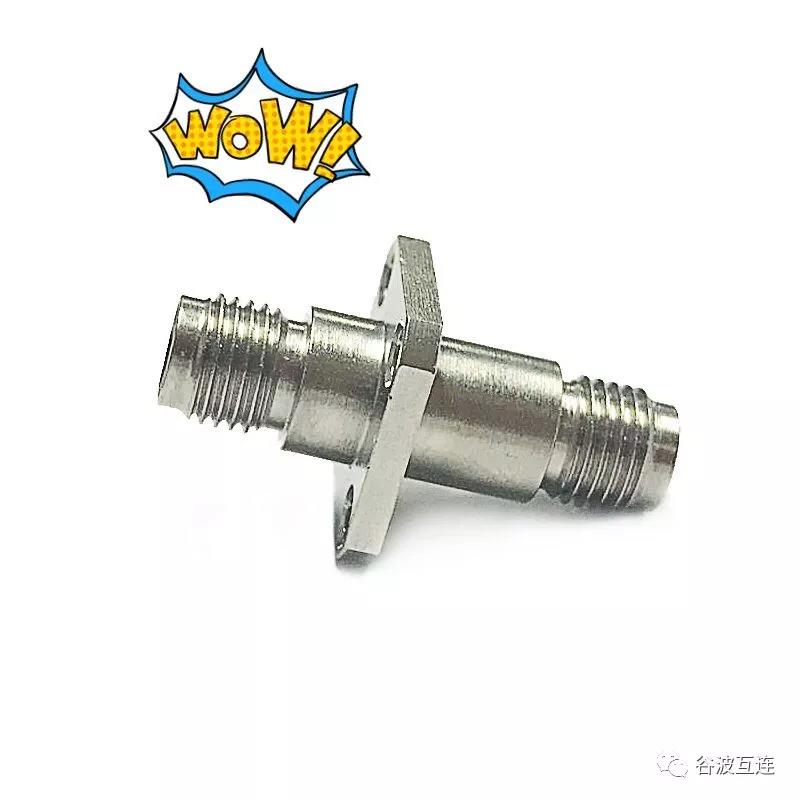

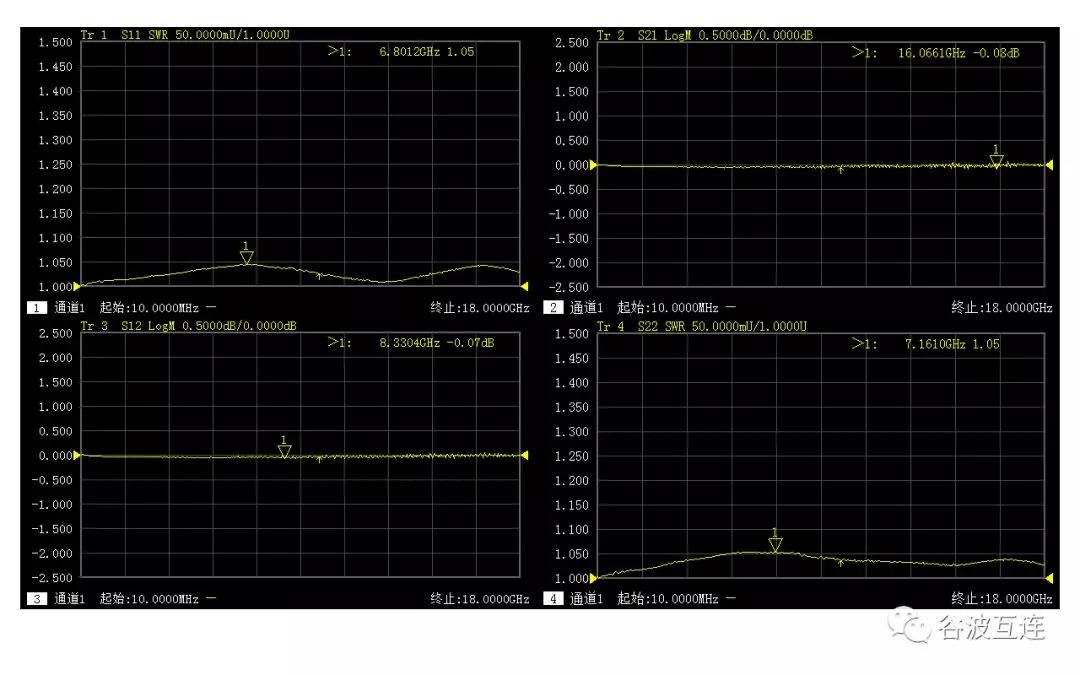

High Performance This product, which is made from brass and gold, had been put on the market by Gwave since 2010.At present, its body material is replaced by stainless steel in order to made it more durable than before.After several years of researches on optimization, it has been a high-performance adapter. For instance, the VSWR is around 1.05 when the frequency is less than 18GHz,and it will be a qualified product until VSWR<1.1@18GHz according to the inspection standard before leaving the factory.At the same time,the insertion loss is lower 0.07dB@18GHz.Certainly,if the application frequency is between 18Ghz and 26.5GHz,please take it easy because the frequency of use is able to be extended to around 30GHz with VSWR<1.2.

Large Stock Each year,Gwave has a large number of storage due to the widely use of this product to satisfy the customer’s emergency requirement. You could place your orders online and we could deliver the products the same day.
